A-StarCut XPZ
​
​
40-350gsm​
Auto Load, Calibrate
​Load Capacity: 100 pages
*Half/Full cut at same time
E-Brochure
Manual
Parameter (XP with 350gsm ability)
Application
Work Flow
Step 1.
Add Black Mark for Print
Step 2.
Add Green Mark, export to PLT
Step 3.
Load PLT and export to cutter
Hardware
Feeding Roll 1
Feeding Roll 2
Assist Roller
Media Separate Devices
Liner guider for great durabtion
Double Feeding System
​Enable smooth feeding
Adjustable sensor
​suits majority media
10 Rollers（XP/VP) to handle crinkled/laminated media
​When cut CardBoard, 10 rollers also help a lot.
​
​
​Unique Cut Carriage placement to enable 5mm margin
(XP/VP has 10 Pressure Roll as picture above)
Unique Software
3 different mode in one Job
​
Half Cut:
Black Path-Current Force
Full Cut:
Cyan Path-Current Force*2
Full Cut with 4 Dots to prevent drop
Magenta Path-Current Force*2
Auto Track & Calibrate
Besides Cut Sticker,
A-StarCut can also be used as CardBoard Cutter.
​To create customized boxes )
With TWO 5mm Marks.
A-StarCut is able to Track & Calibrate since digital printer usually print slightly off center.
​
With the additional 2/4 marks. Ultra-Precision can be reached.

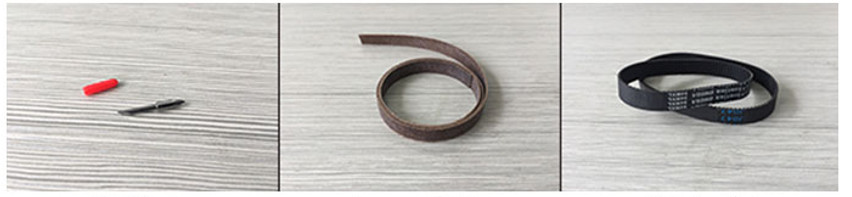

Consumable
U15 Blade
$1.5/pc
Lifetime: 1000/Meters
​Depends on Media & Shape
Layer
$5/pc
Lifetime: 6-9 month
*FullCut will shorten it's lifetime​
(Compatible cheaper layer used for fullcut)
Belts for Motor
$5/pc
​
Package
Parts with A-StarCut
1. Screw Driver
2. Power Cable
3. 1 USB Disk contains software, user guidance
4. 2 pcs layers
5. 3 pcs blades
6. 4 pcs Belts
​* For X/XP/V extra USB cable is provided
​
​
​
-
Foam Mat with Carton Box
-
Pack Size 85*42*40(mm)
-
Gross Weight 30Kgs
After sale & Guarantee
We provide service via Youtube Videos, Whatsapp/Skype/Wechat, AnyDesk Remote Assist.
Guarantee Term.
1 Years on Boards/Motors etc
​Comsumable Parts such as Blade/Layer is not guaranteed.
​​
