Digital Roll Label Cutter
Servo-driven Roll Digital Label Cutter, cut speed to 1,000 mm/s, supporting roll media 60-460gsm, widths of 50–320mm. It also has automatic sheet feed function to cut sheet media.
Roll Digital Cutter | CDC 02
Parameter
Brochure
Application
Work Flow
Step 1.
Add Black Mark for Print
Step 2.
Add Green Mark, export to PLT
Step 3.
Load PLT and export to cutter
Hardware
Feeding Roll 1
Feeding Roll 2
Assist Roller
Media Separate Devices
Liner guider for great durabtion
Double Feeding System
Enable smooth feeding
Adjustable sensor
suits majority media
10 Rollers（XP/VP) to handle crinkled/laminated media
Unique Software
3 different mode in one Job
Half Cut:
Black Path-Current Force
Full Cut:
Cyan Path-Current Force*2
Full Cut with 4 Dots to prevent drop
Magenta Path-Current Force*2
Auto Track & Calibrate
With TWO 5mm Marks.
A-StarCut is able to Track & Calibrate since digital printer usually print slightly off center.
With the additional 2/4 marks. Ultra-Precision can be reached.
Consumable
U15 Blade
$1.5/pc
Lifetime: 1000/Meters
*Depends on Media & Shape
Layer
$5/pc
Lifetime: 6-9 month
*FullCut will shorten it's lifetime
Belts for Motor
$5/pc
Package
Parts with A-StarCut
1. Screw Driver
2. Power Cable
3. 1 USB Disk contains software, user guidance
4. 2 pcs layers
5. 3 pcs blades
6. 3 pcs Belts
*Parts quantity might be changed.
-

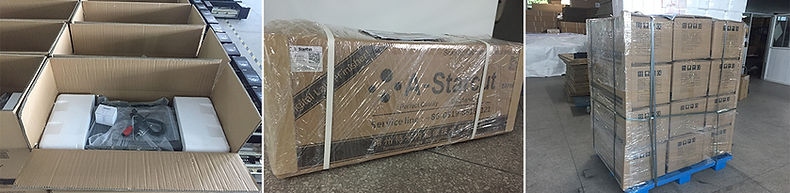

Foam Mat with Carton Box
-
Cutter 85*42*40(mm) 30Kgs
-
Roll Stand 30Kgs
After Sale & Guarantee
We provide service via Youtube Videos, WhatsApp, WeChat. And Remote Assist via TeamView, Anydek etc
Guarantee Term.
1 Years on Boards/Motors etc
Consumable Parts such as toner are not guaranteed.
